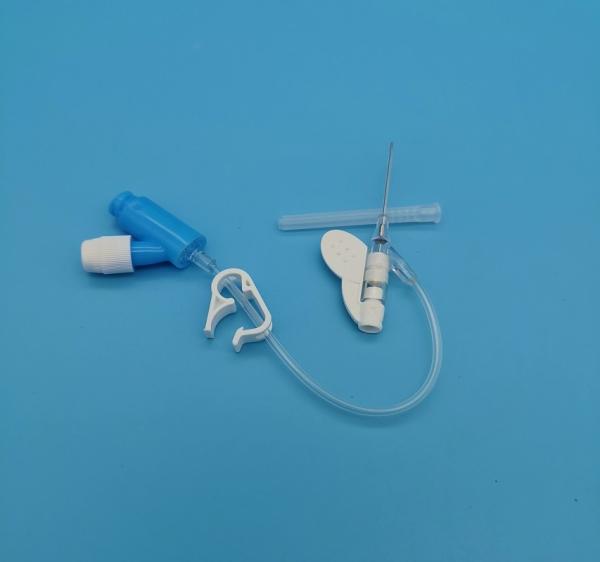

22G Y Positive Pressure Type Disposable Iv Cannula Routine Infusion
For Adults Blue
Product Name :Disposable Iv Cannula
Product Registration Certificate No.: National Machinery Note
Approval 20153141737
The Y Type disposable intravenous indwelling needle is divided into
two types, Y-B and Y-BZ.
Color-coded casing cap allows for easier identification of catheter
size
Translucent catheter hub and flashback chamber allows for easy
detection of blood flashback at vein insertion
Precision finished FEP catheter assures stable flow and eliminates
catheter tip kink during venipucture
Can be connected to syringe by removing filter cap to expose Luer
taper end
Use of hydrophobic membrane filter eliminates blood leakage
Close and smooth contact between catheter tip and inner needle
enables safe and smooth venepuncture
| Type | Product Specifications | Flow Rate | Clinical Applications | Color |
Y-B(Y type)
Y-BZ(Y Positive Pressures type)
| 26G*0.63IN | 0.6*16mm | 10ml/min | Neonates and fine vessels | Purple |
| 26G*0.75IN | 0.6*19mm |
| 24G*0.75IN | 0.7*19mm | 19ml/min | Pediatrics/Neonatal Infusion | Yellow |
| 22G*0.75IN | 0.9*19mm | 33ml/min | Routine infusion for adults | Blue |
| 22G*1.00IN | 0.9*25mm |
| 20G*1.16IN | 1.1*30mm | 50ml/min | Emergency infusion/blood transfusion | Pink |
| 18G*1.16IN | 1.3*30mm | 70ml/min | Emergency Surgery | Green |
Positive pressure connector realizes needle-free connection to
avoid occupational risk for medical staff. Positive pressure
function can avoid blood backflow, prevent blockage and ensure safe
retention
Operation method(For reference only)
1. Remove the protective sleeve and puncture the vessel according
to the aseptic operation specification, with a recommended puncture
angle of 15° to 30°. Successful puncture is indicated after blood
is seen back at the needle seat. Then pull out the syringe and
leave the catheter in the vessel.
2. Connect the cone tip of the infusion set with the tube body and
fix the tube body to the body with medical tape, then infuse.
3. When the infusion is finished, if it is to be left in the body
for another infusion, some anti-coagulant should be injected into
the catheter line and the mouth of the tube body should be tightly
covered with a protective cap, and the next infusion should be
carried out again according to step 2 by removing the protective
cap.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Where is your factory located? How can I visit there?
A: Our factory is in Wuzhong District, Suzhou City, Jiangsu
Province, and all our customers, both domestic and foreign, are
warmly welcome to visit our factory
Q: Are you a factory or a trading company?
A: We are a large factory integrating R&D, production and
sales.
Q: When can I get the price?
A: Normally, we quote within 24 hours after we receive your
inquiry.
Q: Can you do OEM?
A: Yes, we do OEM, ODM and R&D. We can process products
according to the different needs of our customers.
Q: What is the delivery time?
A: According to the order quantity, it needs to be negotiated.
Q:If I want to order a small quantity, can you do it?
A: If you need products that we have in stock, that would be great
and you can choose goods that are in stock.We can put your order
together with our other customers' orders for production. But this
will require some waiting time.
Q:How will you track my order?
A:When the goods start production, we will take photos of the goods
and send them to you, if you find any production,defects, please
contact us to correct it. Throughout the production process, we
will keep in touch with you via email or instantinformation and you
can get the latest news about your order. After the goods are
completed, we will take pictures of the goods and pack
to you before shipping.
Q: How can I get a sample?
A: Please pay the sample cost and courier fee before we receive
your first order. We will return the sample cost to you on your
first order.
Q: Can you brand the products with our brand?
A: Some products can. We can put your Logo on the products and
packaging if you can meet our MOQ.
Q: Can you make products in our colors?
A: Yes, the color of the product can be customized if you can meet
our MOQ.
Q: How do you guarantee the quality of your products?
A:
1) Strict testing during the production process.
2) Strict sampling inspection of products before shipment, and make
sure the products are well packed.
