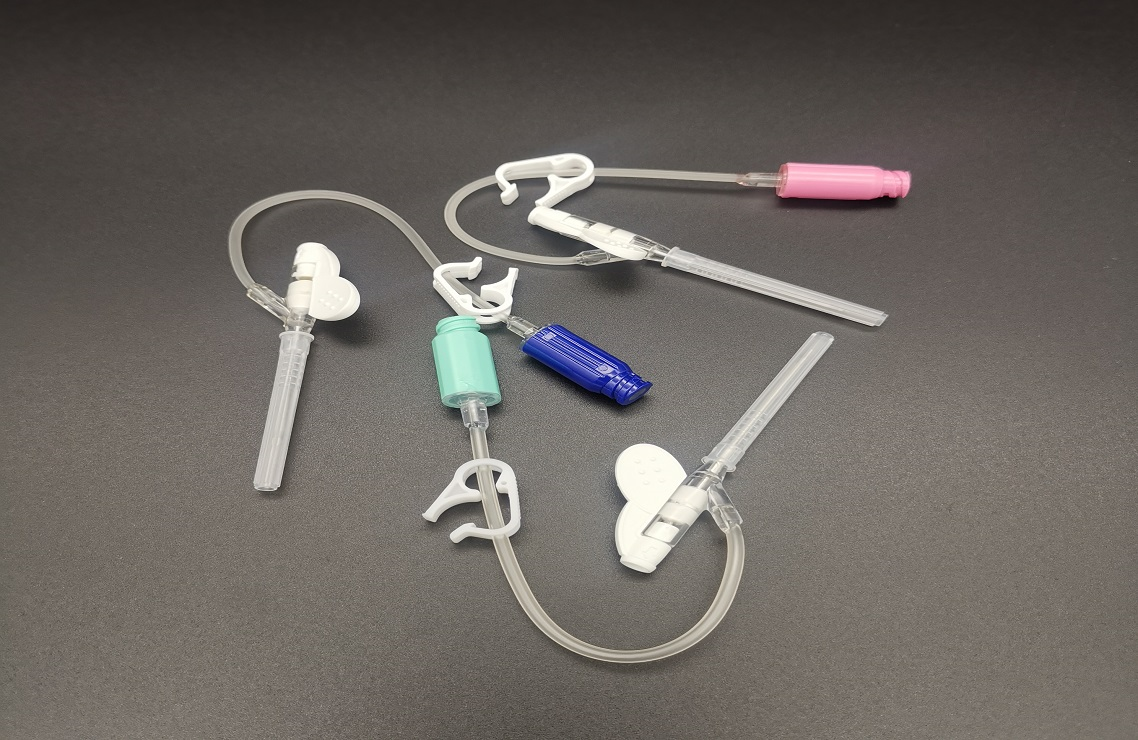

20G Butterfly Positive Pressure Type Disposable Iv Cannula
Emergency Infusion/Blood Transfusion Pink
Positive pressure connector realizes needle-free connection to
avoid occupational risk for medical staff. Positive pressure
function can avoid blood backflow, prevent blockage and ensure safe
retention
Indwelling needles are left in the foot:
(1) Do not walk on the foot with the needle in place as much as
possible;
(2) Put clothes or soft pads between the legs to separate the feet
when sleeping to prevent the child's feet from stirring off the
needles;
(3) Elevate the limb with the indwelling needle slightly by 20 to
30 degrees when sleeping to prevent back bleeding.
Butterfly Positive Pressure Type Disposable Iv Cannula
Product Registration Certificate No.: National Machinery Note
Approval 20153151737
divided into two types, Y-A and Y-AZ.
| Type | Product Specifications | Flow Rate | Clinical Applications | Color |
Y-A(Butterfly type)
Y-AZ(Butterfly Positive Pressures type)
| 26G*0.63IN | 0.6*16mm | 10ml/min | Neonates and fine vessels | Purple |
| 26G*0.75IN | 0.6*19mm |
| 24G*0.75IN | 0.7*19mm | 19ml/min | Pediatrics/Neonatal Infusion | Yellow |
| 22G*0.75IN | 0.9*19mm | 33ml/min | Routine infusion for adults | Blue |
| 22G*1.00IN | 0.9*25mm |
| 20G*1.16IN | 1.1*30mm | 50ml/min | Emergency infusion/blood transfusion | Pink |
| 18G*1.16IN | 1.3*30mm | 70ml/min | Emergency Surgery | Green |
Hands with indwelling needles should not be immersed in water, and
when washing hands, avoid the area covered by the indwelling needle
patch;
Put a sock on the hand with the indwelling needle after the
infusion (turn the sock over when you put it on, because there are
threads inside the sock) to prevent the child from tearing off the
needle when playing.
Instructions for use:
1. medical personnel should check the package strictly according to
aseptic operation, and remove the product if it is well sealed and
not broken;
2. tighten the heparin cap (if any), remove the protective cap and
connect directly to the outer luer connector to drain the gas;
3. medical personnel rotate and loosen the needle tip protection
sleeve, pinch the catheter holder with one hand, turn the needle
handle slightly from side to side with the other hand, and then
reset it to prevent needle adhesion;
4. hold the needle holder flap so that the syringe blade is facing
upward at an angle of 15-30 degrees, puncture the vein straight and
feed the needle slowly;
5. carefully observe the return of blood at the lateral hole of the
needle core, depress the angle after seeing the return of blood,
continue to enter the needle for 2 mm, hold the catheter holder in
the left hand and withdraw the steel core about 5 mm with the right
hand;
6. Hold the needle holder and feed the steel needle core and
catheter together all into the vessel, and withdraw the steel
needle core. Do not re-insert the steel needle into the catheter to
avoid damage to the catheter. Put the withdrawn steel needle into
the special apparatus;
7. Adjust the infusion flow rate by applying a transparent
dressing.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
